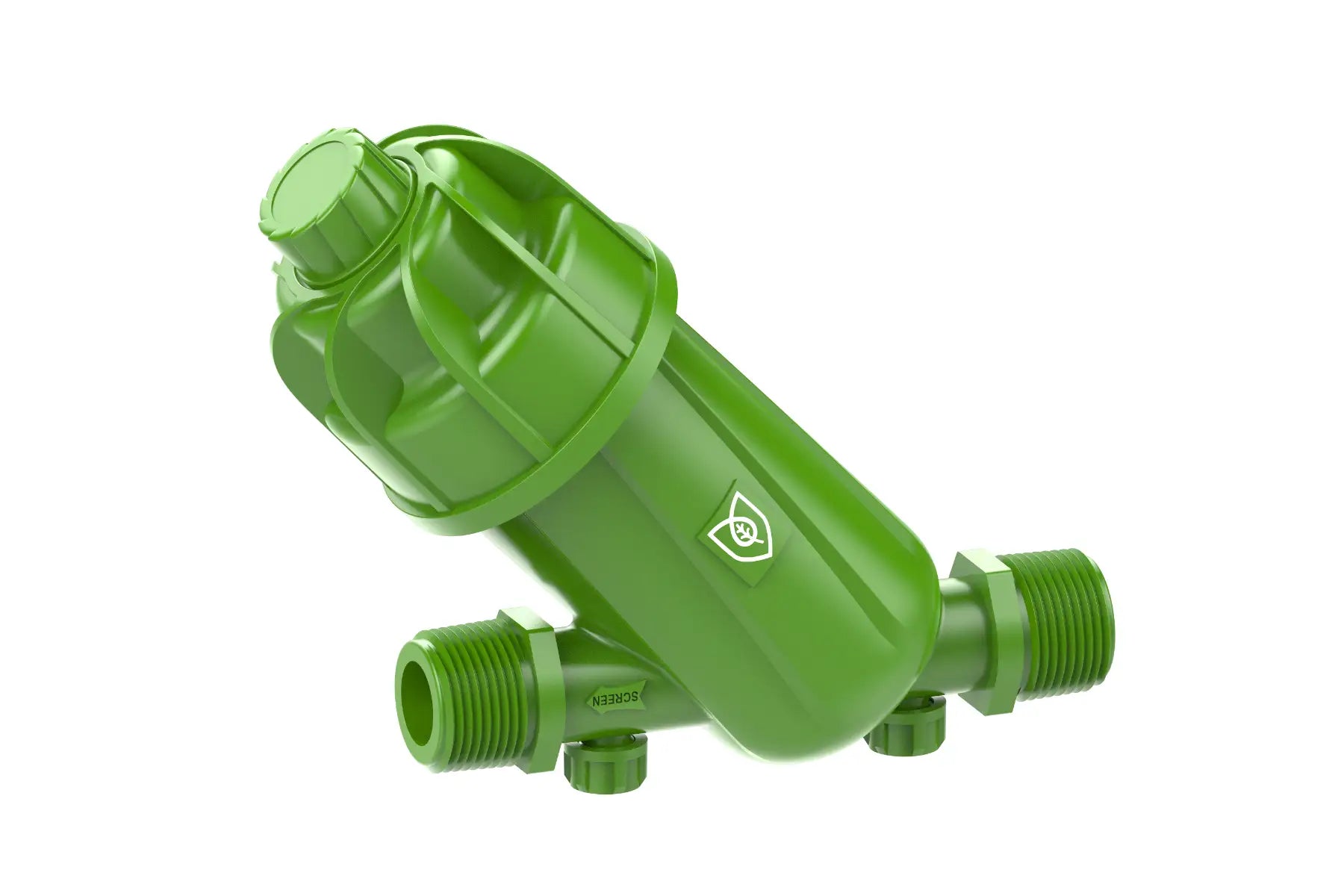

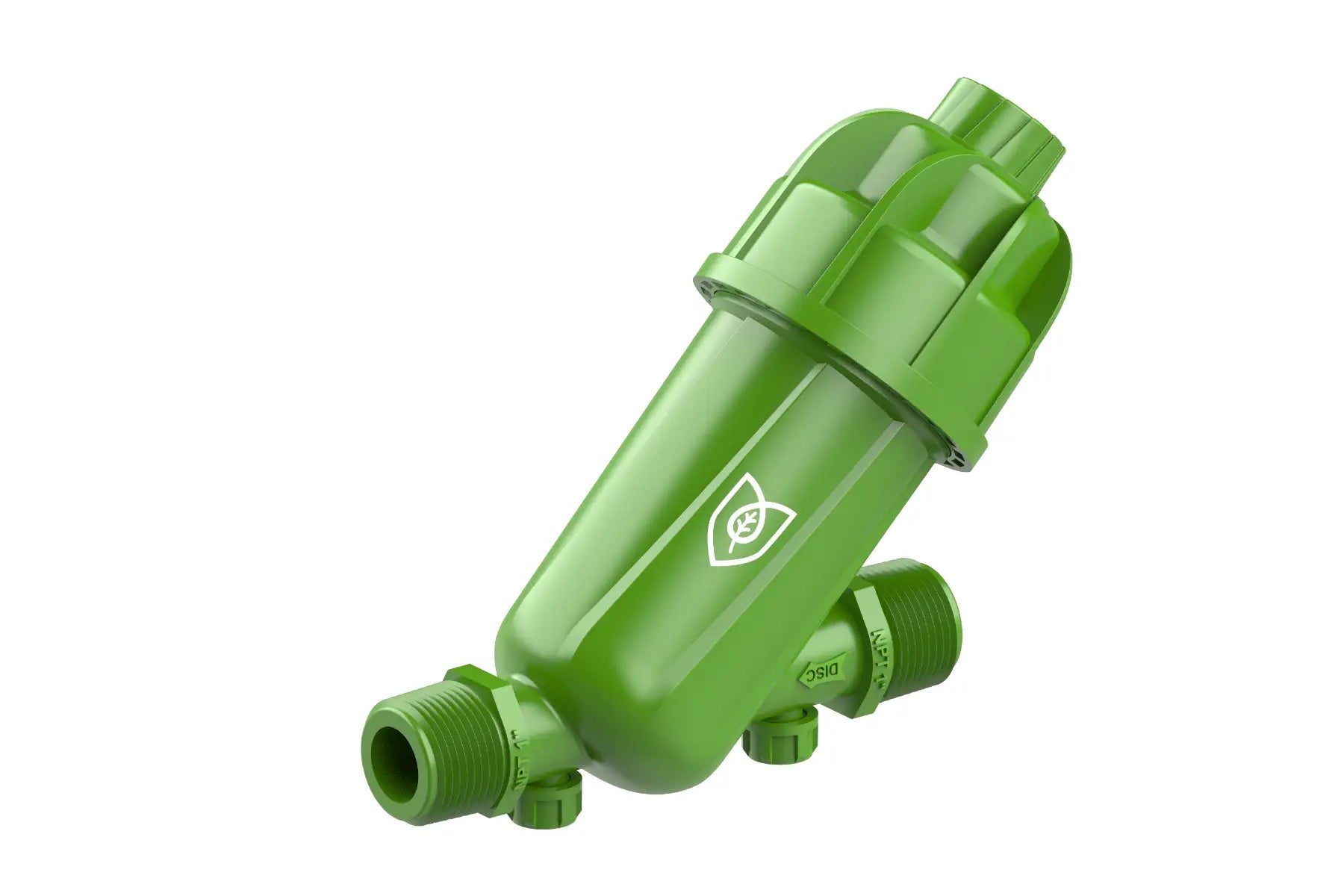

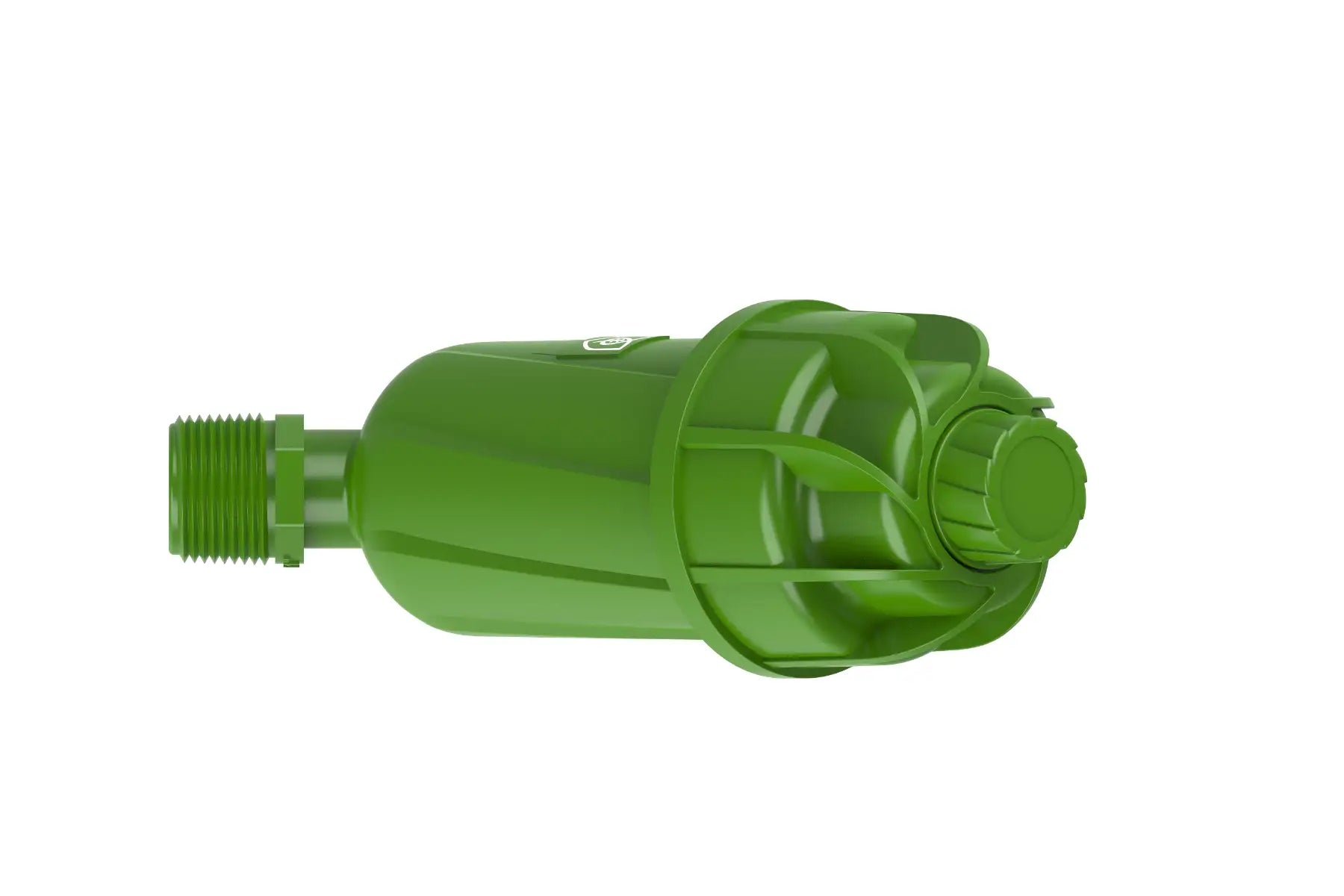

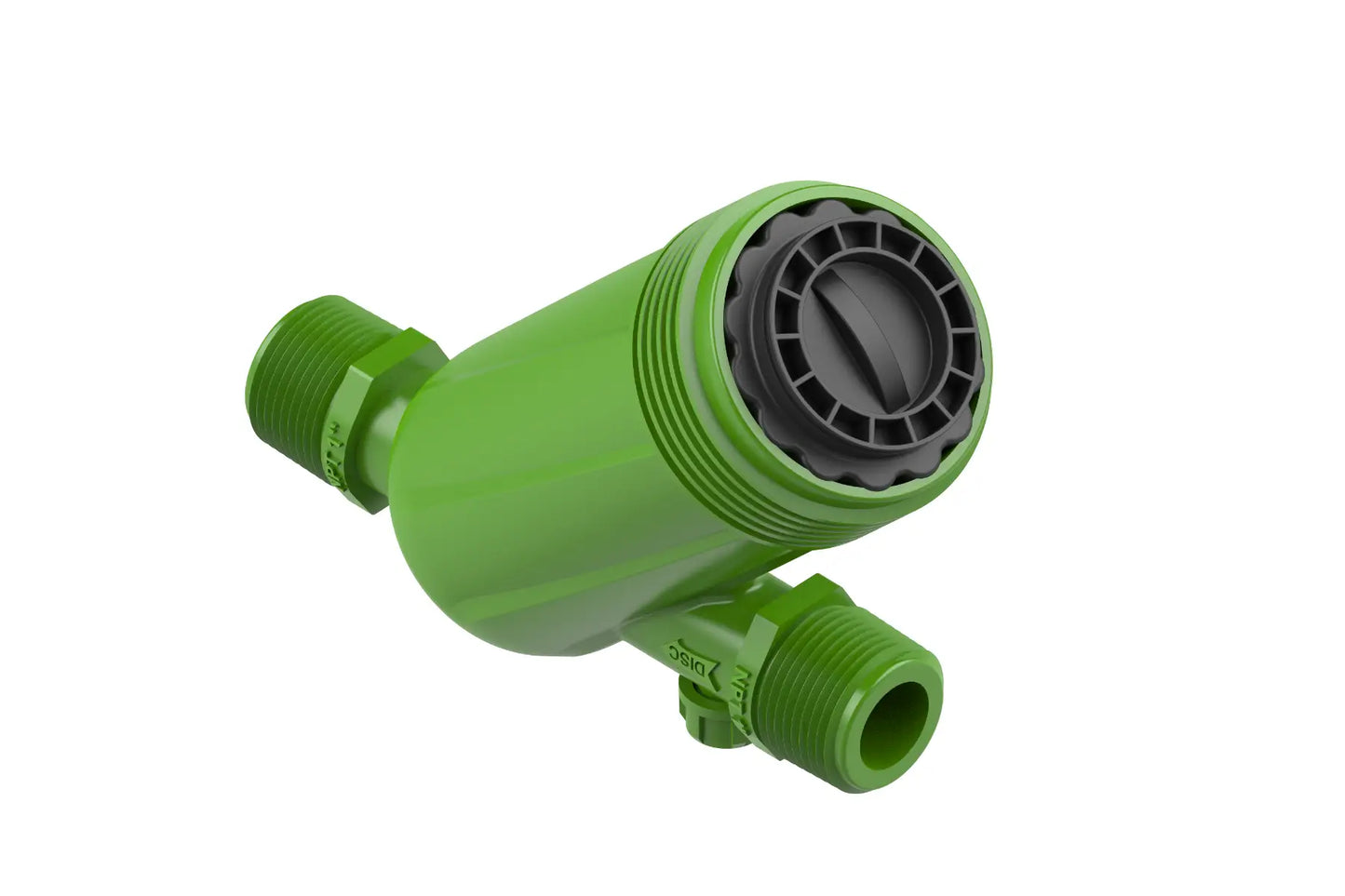

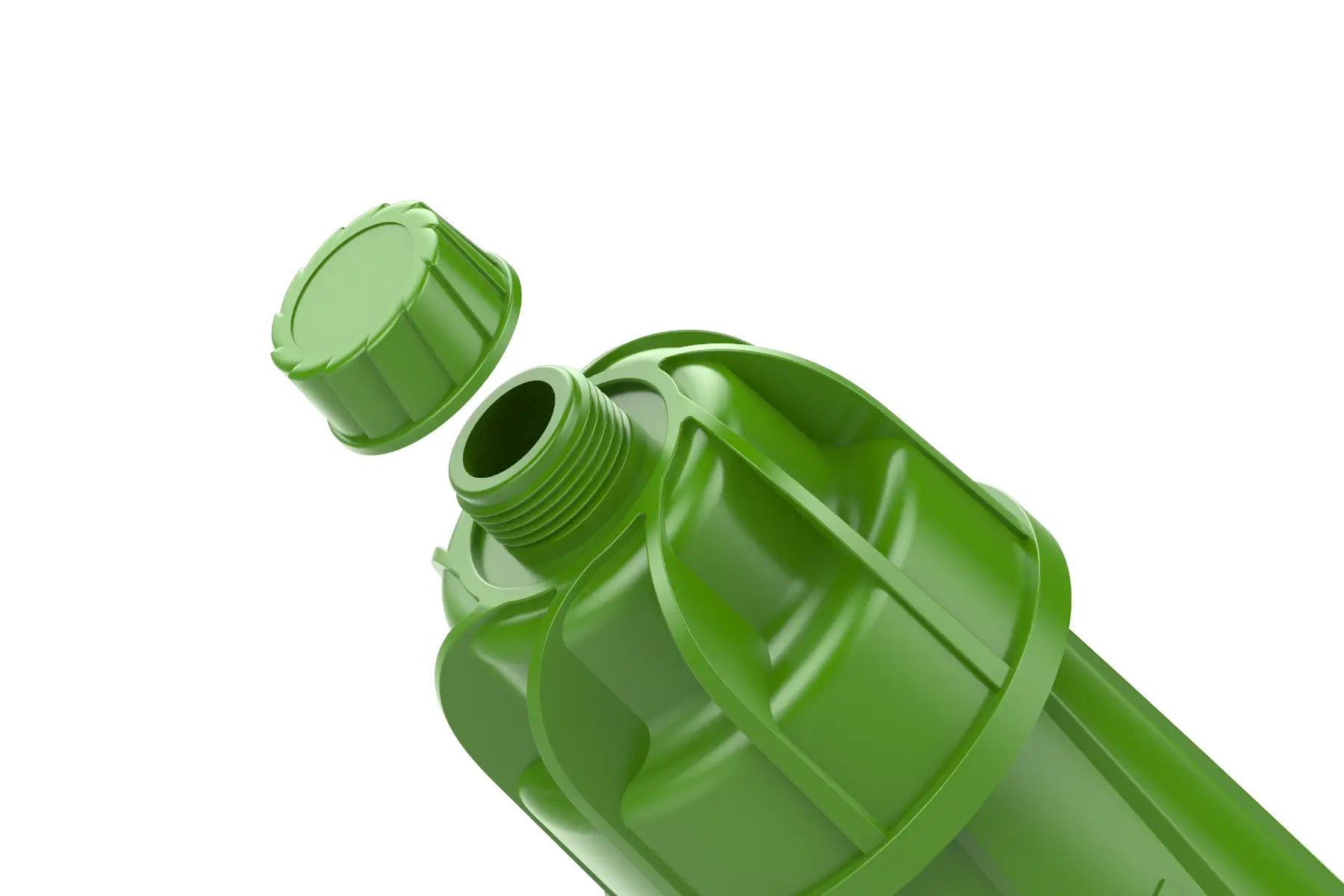

FloraFlex Disc Filters PIPE DIAMETER 1"

he FLORAFLEX Disc Filter is a robust and reliable filtration solution designed to ensure clean and efficient operation of your irrigation system. Constructed from UV-resistant and heavy-duty plastic material, this filter is built to withstand adverse conditions and provide long-lasting performance.

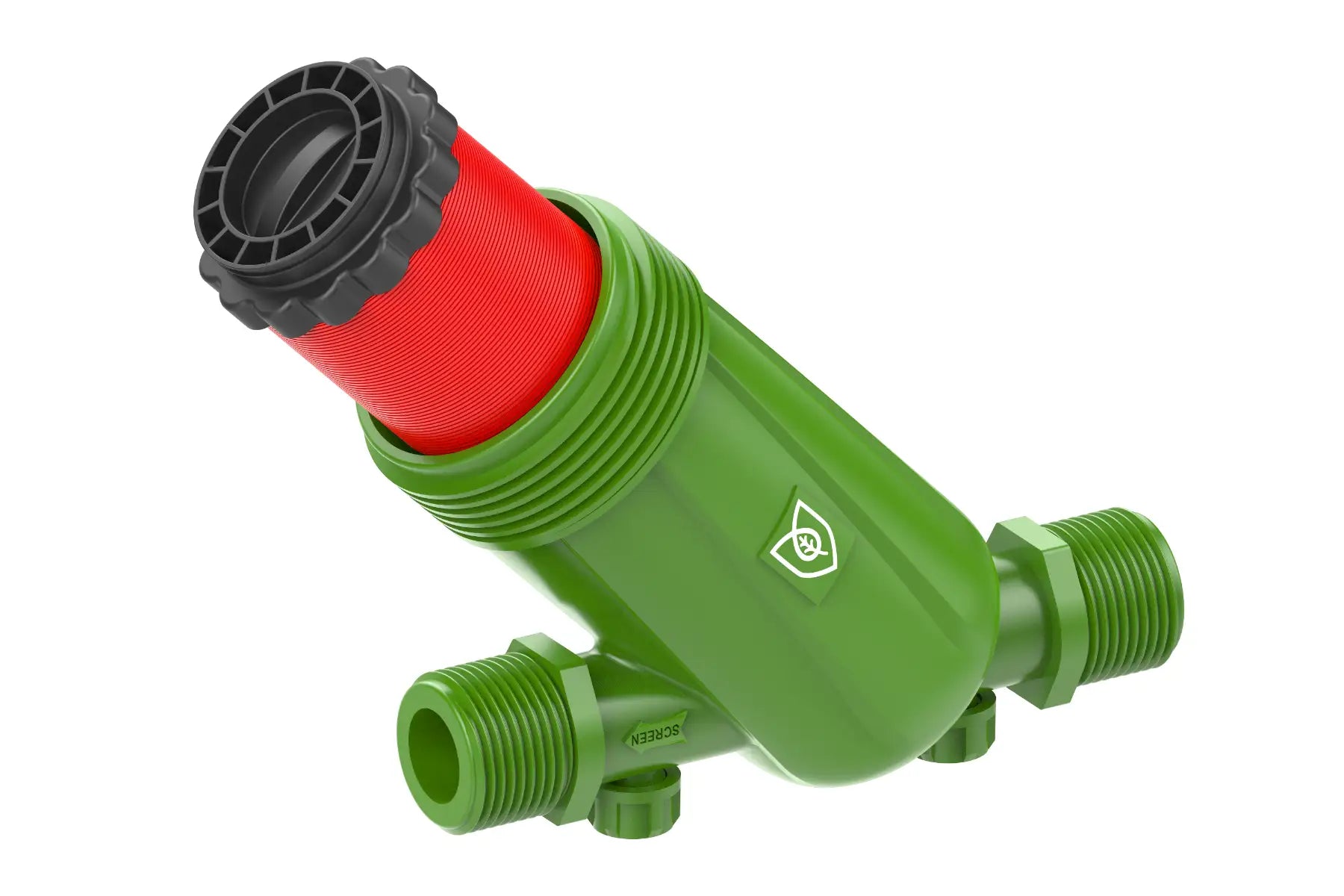

With 3/4" or 1" male pipe thread connections on each end, the FLORAFLEX Disc Filter offers easy installation into your irrigation system. Its innovative three-dimensional filtration mechanism consists of plastic grooved discs compressed and stacked together on a plastic spine, forming a cylindrical filter element. As water flows through the stacked discs, sediments and debris accumulate on the outer face, allowing clean water to pass through and out of the filter.

The FLORAFLEX Disc Filter is designed for low maintenance. The discs can be easily extracted for cleaning, ensuring optimal filtration performance. With excellent resistance to common chemicals used in drip irrigation applications, the discs are built to withstand the challenges of the irrigation environment.

Ideal for large irrigation zones that require a lower flow rate, the FLORAFLEX Disc Filter offers a filtration level of 120 mesh/130 microns. It provides in-depth filtration, extending the lifetime of your FLORAFLEX irrigation system and promoting efficient water usage.

With a maximum recommended flow rate of 26 gallons per minute (gpm) and a large filtration area of 28 square inches, the FLORAFLEX Disc Filter offers superior filtration capacity to meet your irrigation needs.

Key Features:

• Constructed from UV-resistant and durable plastic material for longevity and performance in adverse conditions
• Easy installation with 3/4" or 1" male pipe thread connections
• Three-dimensional filtration mechanism with grooved discs for efficient sediment accumulation
• Low maintenance design allows for easy extraction and cleaning of discs
• Excellent resistance to common chemicals used in drip irrigation applications
• Ideal for large irrigation zones with a lower flow rate
• Filtration level of 120 mesh/130 microns
• Maximum recommended flow rate of 26 gpm
• Large filtration area of 28 square inches
• Recommended installation after a valve or shut-off point to prevent constant pressure on the filter

Product Specifications:

• Product Type: FLORAFLEX Disc Filter
• Filtration Level: 120 mesh/130 microns
• Max Recommended Flow Rate: 26 gpm
• Filtration Area: 28 square inches
